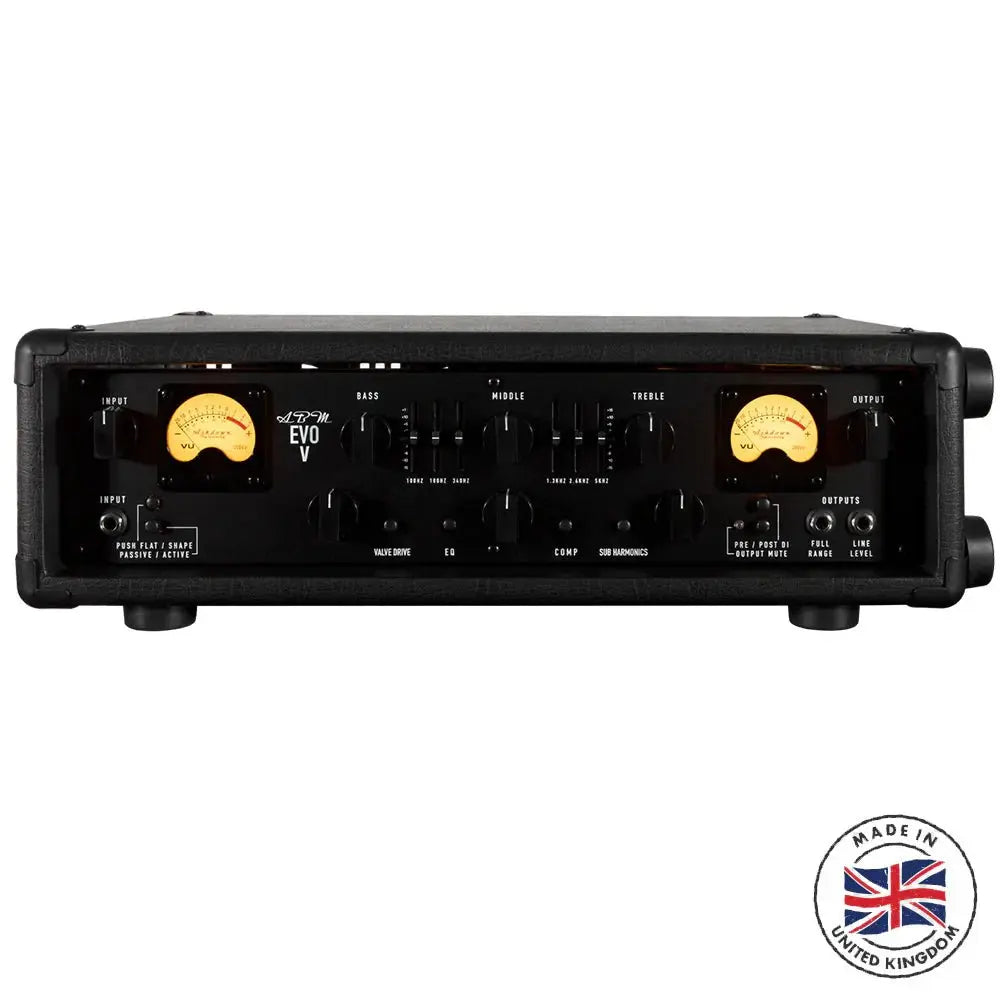

Ashdown ABM-750-EVO V

Introducing the Ashdown ABM EVO V Bass Amp Head, the latest evolution of a 25-year legacy in bass amplification. Featuring a sleek all-black design (with slight variations in shade), this amp head combines modern aesthetics with a nod to tradition, retaining the iconic Ashdown illuminated VU meters for both input and output signals. With a 750-Watt output, the EVO V offers unmatched power and headroom, ensuring dynamic response and clarity for your bass tones. The amp also includes classic features like a 9-band EQ, 12AX7-powered Valve Drive, onboard compressor, and sub-harmonic control for fine-tuning your sound.

Built with both performance and practicality in mind, the ABM EVO V adds new features like mains voltage switching, temperature-controlled low-noise cooling, and a transformer-isolated DI output. Ashdown's Managing Director, Dan Gooday, emphasizes that the EVO V was designed based on customer feedback, providing more power and dynamics than ever before. Trusted by bass legends like Nate Mendel, James Johnston, and Shavo Odadjian, the Ashdown ABM EVO V is the ultimate choice for bassists seeking to elevate their sound to the next level.

SPECIFICATIONS

• Power Output - 750 Watts
• Power Requirement - 115-230 Volts
• Speaker Outputs - 2 x Jack/Speakon outputs
• Frequency Response - -3dB @ 17Hz und 30KHz
• High Instrument Input - Impedance 3.9m Ohms, input range 150MV
• Low Instrument Input - Impedance 10k Ohms, input range 300mV - 40V p-p
• Line Input - Impedance 22k Ohms, input level 0dBu nominal
• DI Output - 600 Ohm balanced, Level 0dBu nominal
• Tuner Output - Impedance 22k Ohms, Level 0dBu nominal
• Impedance - Minimum 4 Ohms
• Effects Send - Impedance 22k Ohm, Level 0dBu nominal
• Effects Return - Impedance 22k Ohms, Input level 0dBu nominal
• Pre Amp Tubes - 1 x 12AX7
• H x W x D (mm) - 155 x 489 x 336
• Weight (kg) - 13
